Brick Rakes
Proper Design and Construction

Two recent inspection projects demonstrate three distinct failure mechanisms for brick climb assemblies (the condition where a brick facade travels up a lower level roof rake).   These failures were caused by excessive deflection, water intrusion and brick sliding.

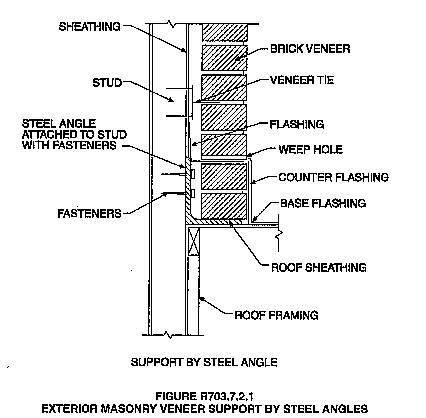

The 2006 IRC requires one of the two assemblies below:
